MCP 2X 1860 30W CSP Kuning Putih LED HeadLight Projie Dakar BiLED 9V

SPESIFIKASI
- Voltage: 9.0-10.5V
- Arus Normal: 2800mA (2x 1400mA)
- Arus Max: 3000mA (2x 1500mA)
- Power Rating: 30W (2x 15W)
- Lumen / Radian Flux: 2775 lm Max
- Viewing Angle: 125

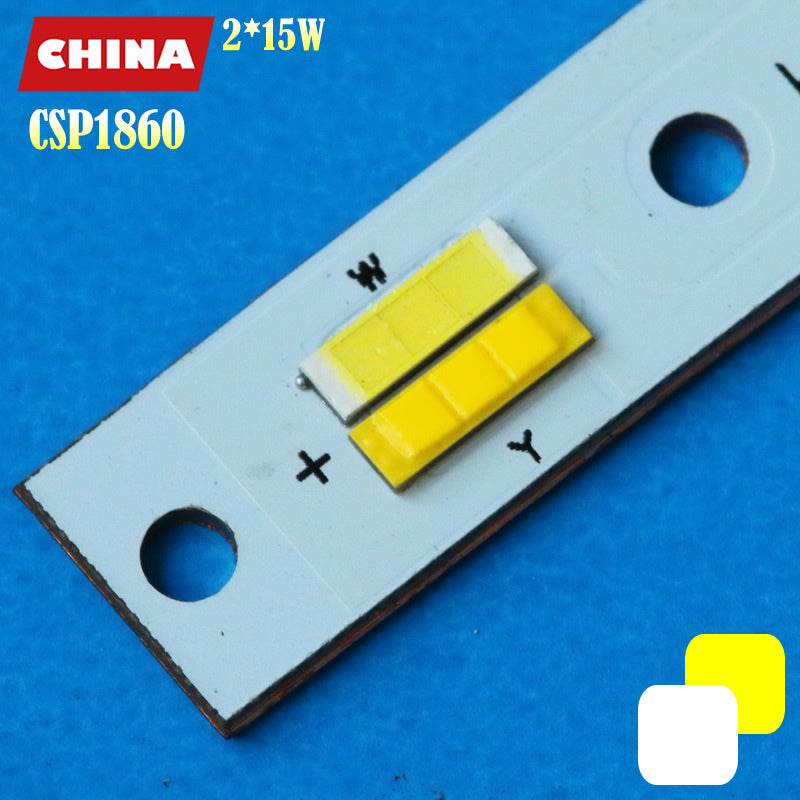

- Chip Size Emitter Area: 2x 1.44mm x 4.45mm
- Base Package: 2x 1.8mm x 6.0mm
- Base Material: Ceramic
- Wire Material: Alloy

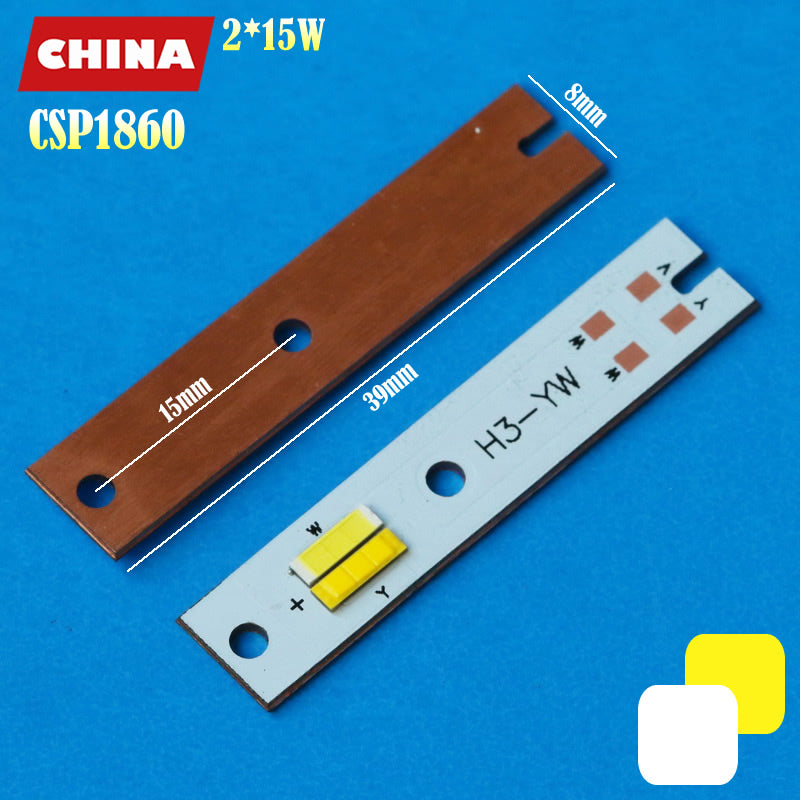

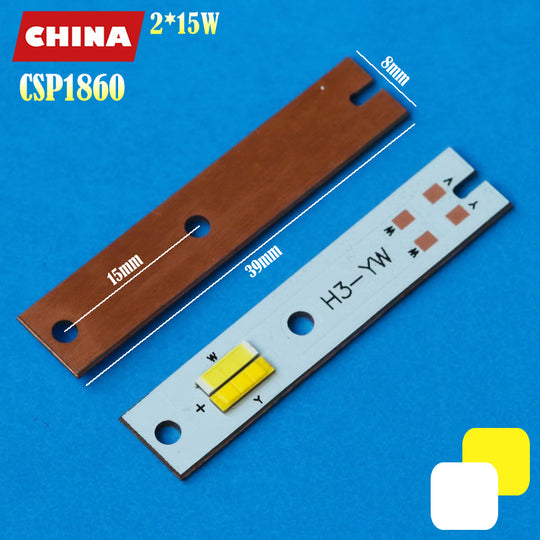

- Base Board: 8mm x 39mm Tembaga
- Asal Chip: China
- Brand Chip: Unknown
- Panjang Gelombang: -
- CRI-Ra: 60-70
- Kelvin: 6500K + PC Golden 2200K
- Pancaran Cahaya: Putih Murni + Kuning Emas
- Cahaya Die: PC Blue Chip PhosPhor Converted

DAYA WATTAGE
- 2500mA: 10V x 2.5A = 25 Watt Power
- 2800mA: 10V x 2.8A = 28 Watt Power
- 3000mA: 10V x 3.0A = 30 Watt Power

KEGUNAAN
- Led H3, H4, Led Laser U94 U95, Projie, Dakar, Pajero, BiLed
- Led Otomotif, DRL, Fog Lamp, Lampu Tembak. Spot, Belor, Work Light
- Pencahayaan atau Penerangan Lainnya

WARNING
- Led Panas, Gunakan Pendingin Secukupnya
- Produk China, Arus Jangan LEBIH Dari 3.0A Agar Awet
