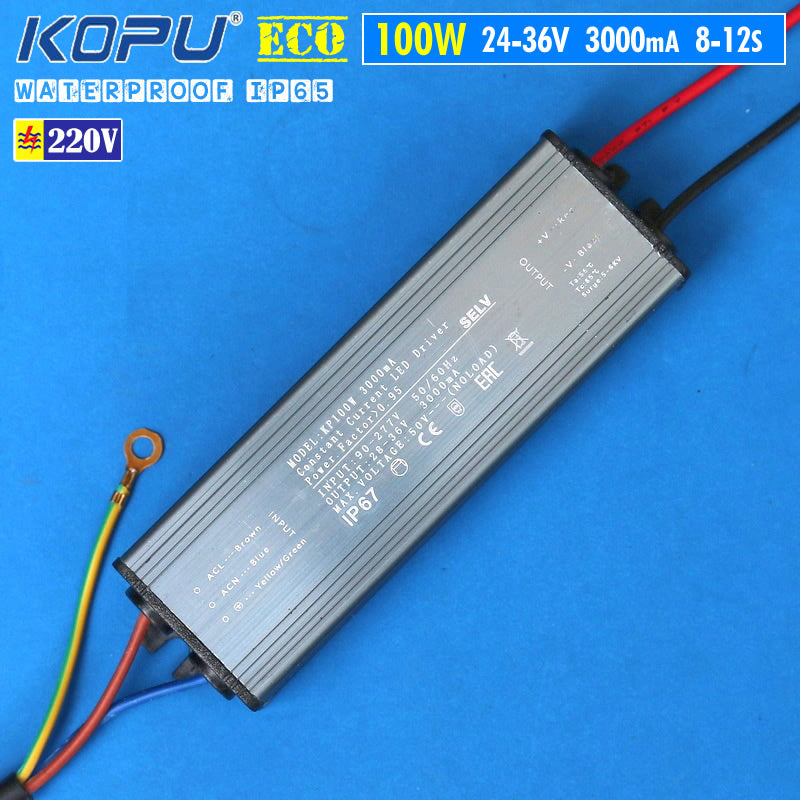

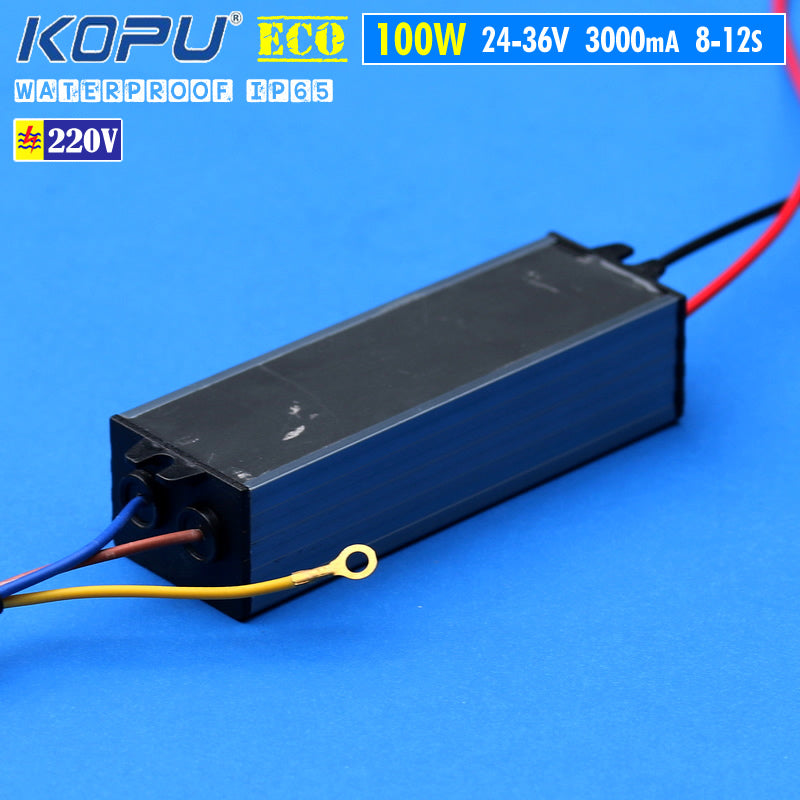

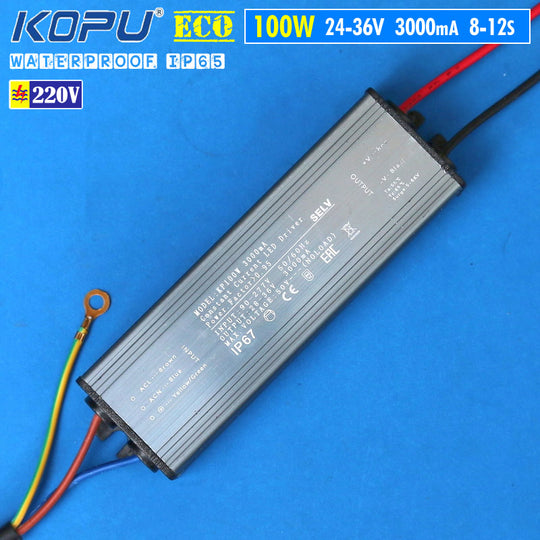

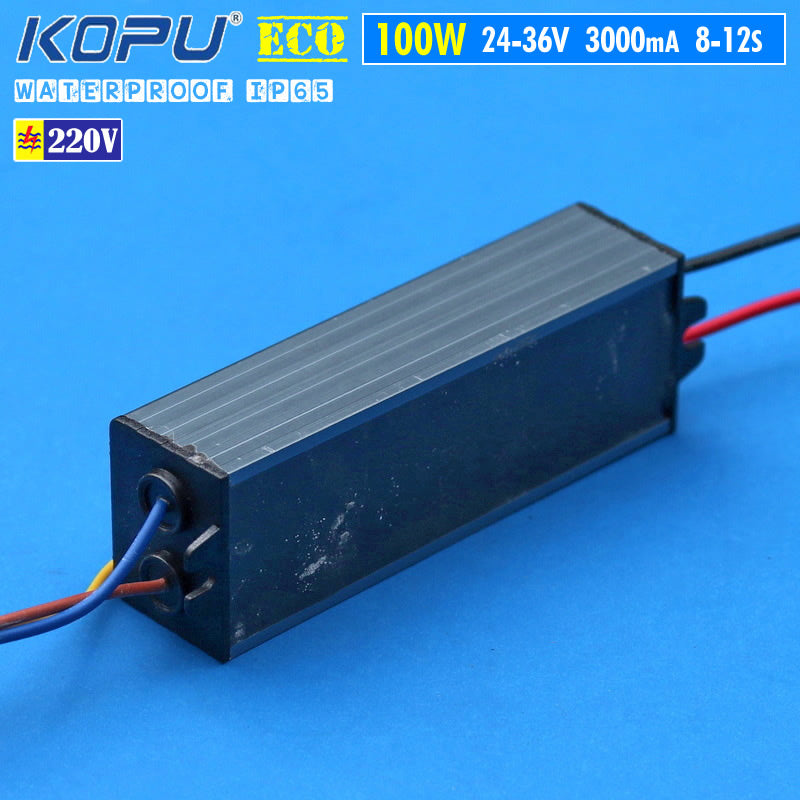

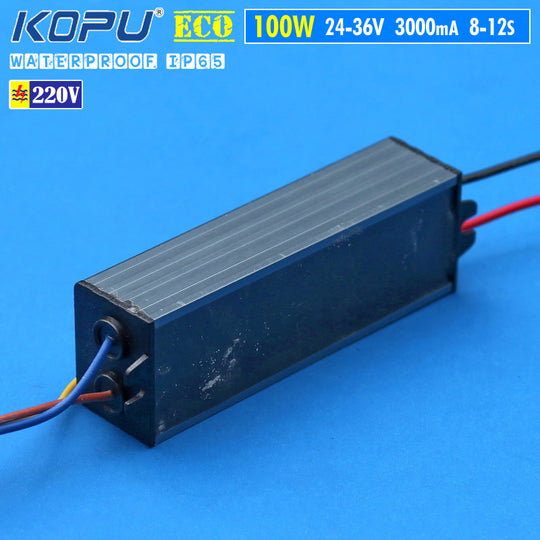

KOPU STD 100W 3.0A Driver LED AC 220V OUT 26-36V PJU Tembak Sorot HPL

Driver Led 100W KOPU Standart

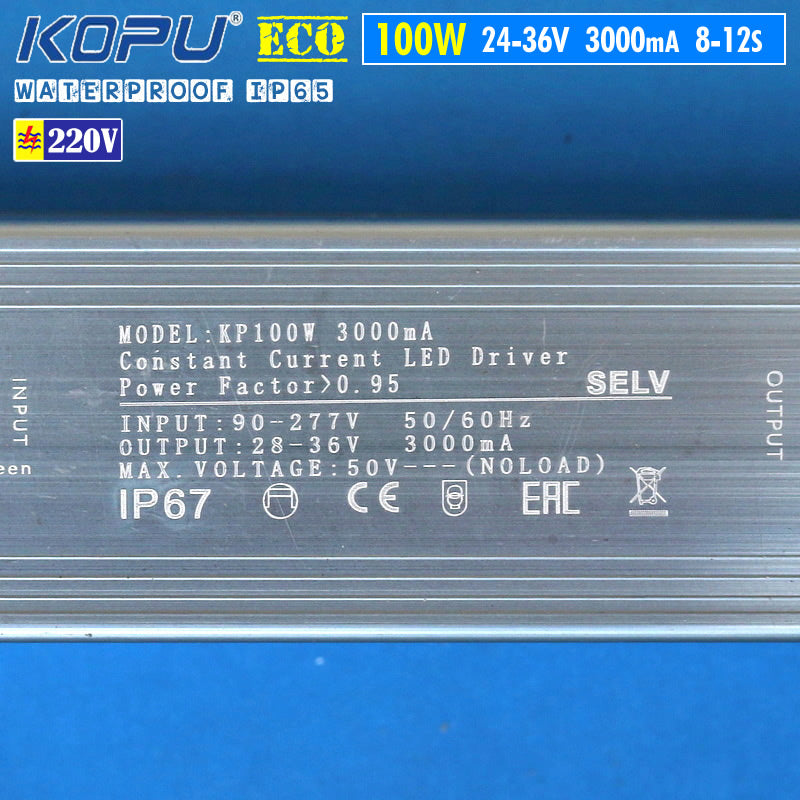

SPESIFIKASI

- Input: AC PLN 90-277V

- Output: DC 26-36V

- Output Tanpa Beban: 49V DC

- Arus Konstan: 2860-2960mA

- Power Rating: 100W

- Waterproof: IP 67 Rainproof

- Casing: Aluminium

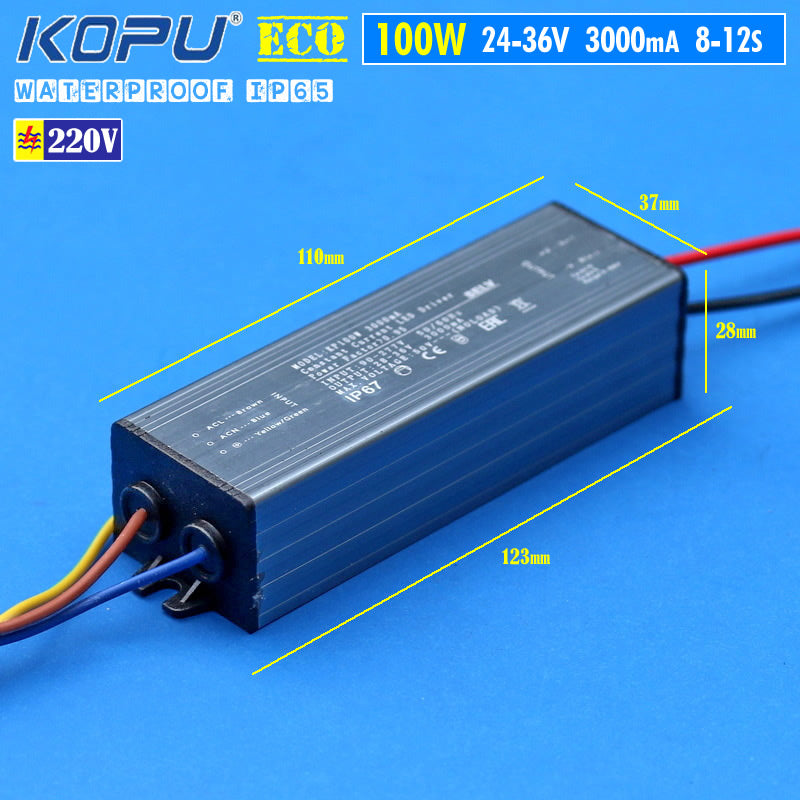

- Dimensi: Lihat Gambar

- Kualitas: KOPU Standart

- Max Suhu Pakai: 85 Celcius

- Berat Bersih: 267 gr

- Power Factor: 0.90

- Spike Protect: Yes 6KV

- Short Protect: Yes

- Temperatur Protect: Yes

- Brand: KOPU

- Asal: China

- Certification: CE, EAC

KEGUNAAN

- Led 1x 100W 33V Taiwan

- Led HPL China 120x 1W Rangkai 10S.12P (10Seri 12Pararel)

- Led HPL Taiwan 100x 1W Rangkai 10S.10P (10Seri 10Pararel)

- Led HPL China 60x 3W Rangkai 10S.6P (10Seri 6Pararel)

- Led HPL Taiwan 40x 3W Rangkai 10S.4P (10Seri 4Pararel)

- Driver Led Custom Lainnya

WARNING

- Led Panas, Gunakan Pendingin Secukupnya

- Cahaya Intensitas Tinggi merusak Mata, disarankan Jangan Di pandang Langsung

INFO

- Driver bisa digunakan untuk 11S 12S led HPL 1W 3W

-
