Driver Led 3W Seri 3-7x 580mA AC 220V Driver Lampu Led 9W 15W 21W HPL COB DC 10-26V Lampu Rel Rell Track Plafon Sorot Spot Down Light Duduk Meja Hias Gantung Tempel




Rp 46,950

Pusatled

199 In Stock Sold Out 199


HURRY ! ONLY 199 LEFT IN STOCK.

Notify Me

INFORMASI
Harga BELUM Termasuk Ongkos Kirim. WA Support Untuk Pilihan Ekspedisi & Biaya Pengiriman WA : 081.575.589.589
CARA PEMBELIAN
1. BELI
Jangan Bayar Dulu
2. KONTAK
081.575.589.589
3. BAYAR
Transfer Total Harga + Ongkir

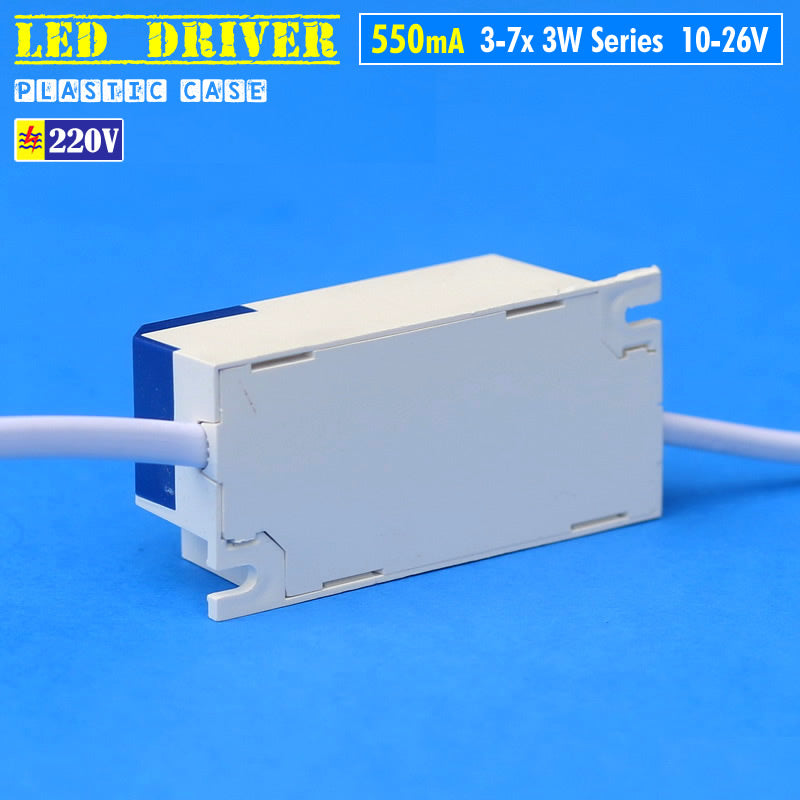

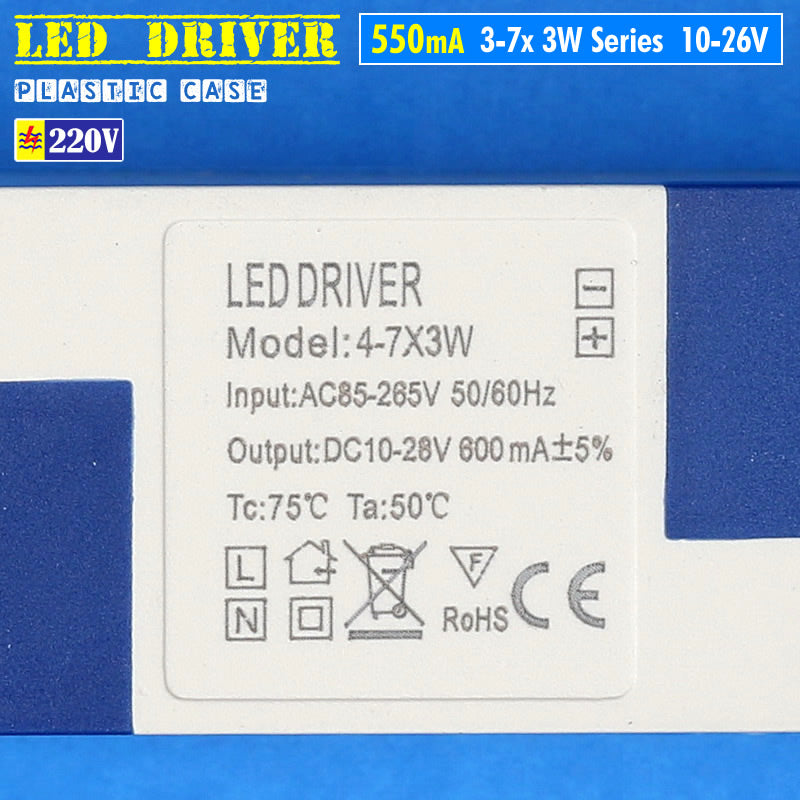

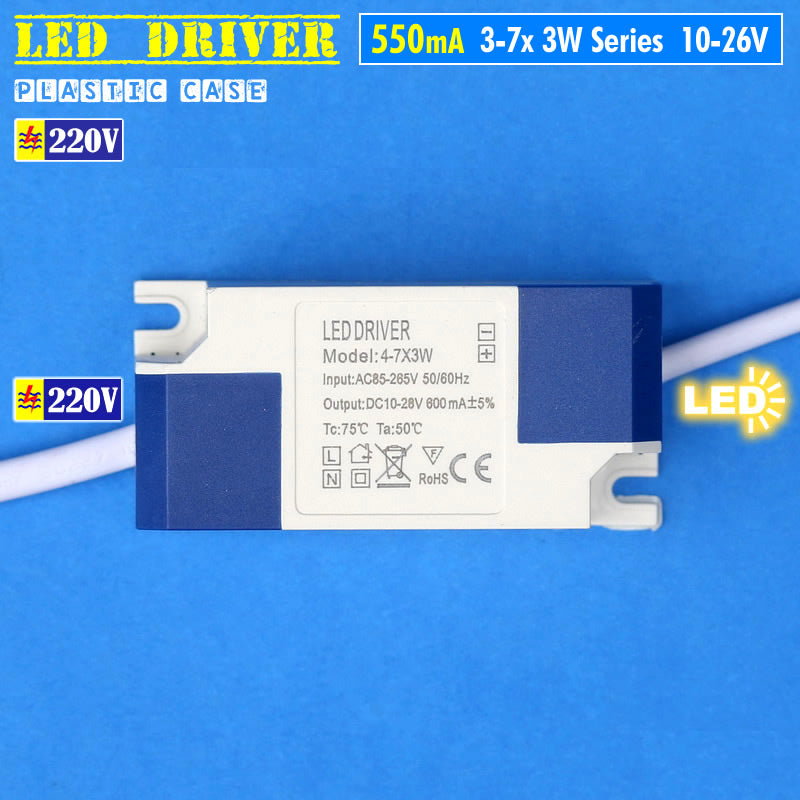

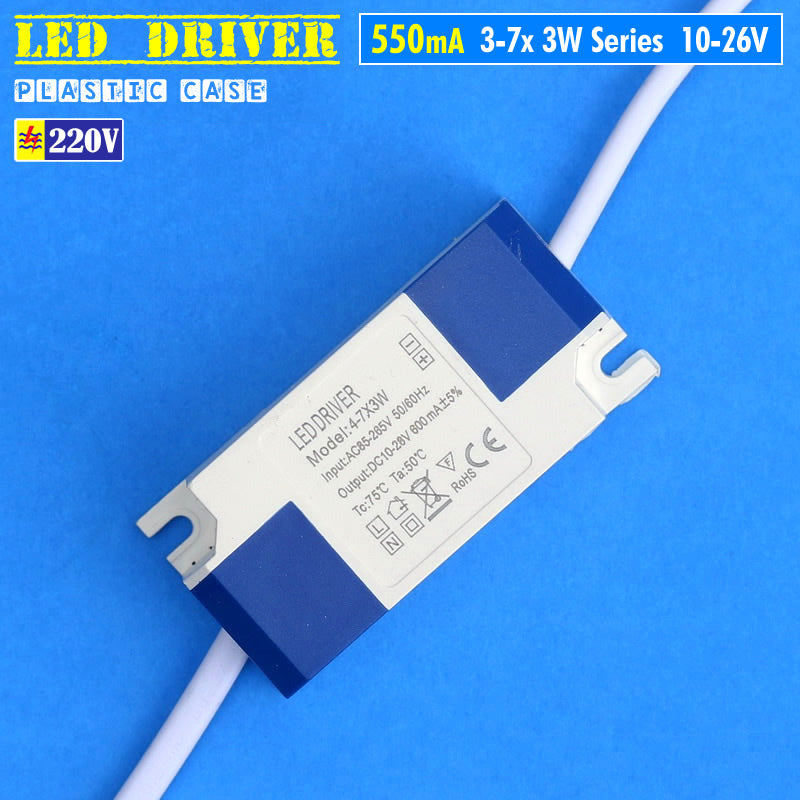

Driver Led 3W Seri 3-7x 580mA Power AC 220V
V.Out DC 10-26V Arus Konstan 570mA - 590mA
Untuk Bohlam Plafon Meja SpotLight 1 Warna
Driver Casing Plastik, Hanya Untuk Indoor
Harga Satuan

WARNING
- Driver Casing Plastik, Hanya Untuk Indoor
- Pastikan Voltase Kerja Led DC 10-26 Volt
- Pastikan Spek Ampere Led 580mA Atau Lebih
- Output 2 Kabel, Untuk Lampu Led 1 Warna
- LED IR, Merah, Kuning, 2 Led Anggap 1 Led
- PCB BUKAN Pendingin! Tambahkan Heatsink!
- Usahakan Maksimum Suhu Led 80C Agar AWET

SPESIFIKASI
- Input: AC PLN 100-265V
- V Out: DC 10-26V Auto
- V Tanpa Beban: 26.5V DC
- Tipe Driver: CC Arus Konstan
- A Out: CC 570-590mA [Tested]
- Sistem Driver: Switching
- Sistem Listrik: Isolated
- Kualitas: Standart
- Dimmable: TIDAK
- Power Rating: 6-14W
- Power Factor: 0.6-0.7
- Efficiency: 90%
- Waterproof: TIDAK
- Casing: Plastik
- Max Suhu Ruang: 50ºC
- Max Suhu Pakai: 75ºC
- Temperature Control: -
- Temperatur Protect: -
- Spike Protect: -
- Short Protect: -
- Berat Bersih: ± 36 Gram

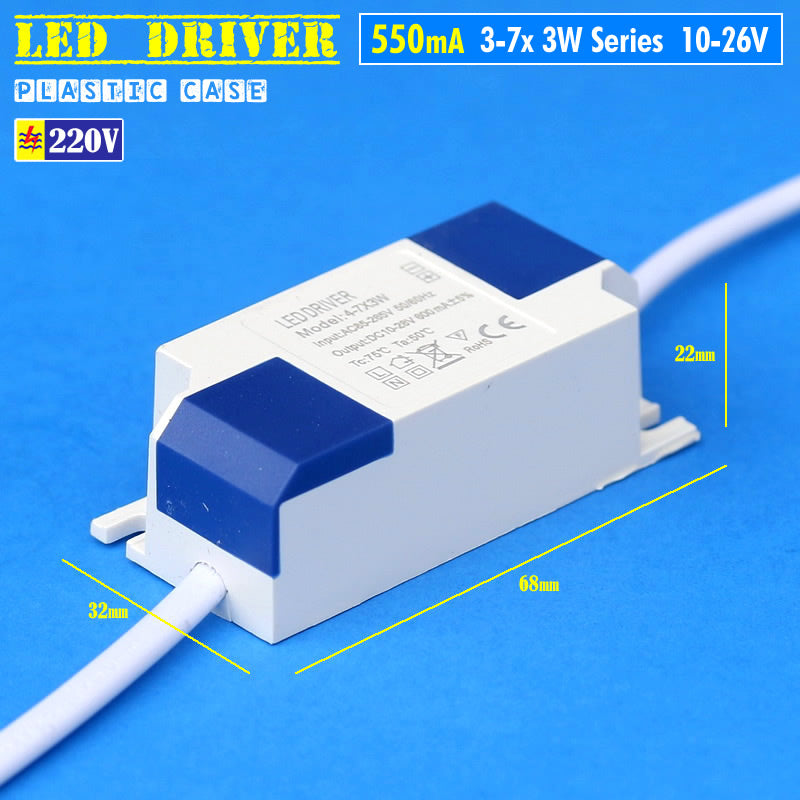

- Dimensi: Lihat Gambar Tambahan
- Panjang Kabel: DC 12cm, AC 12cm
- Konektor DC: JST SM 2 Pin
- Brand: -
- Asal: China
- Certification: CE

KEGUNAAN
- Led HPL 3W Rangkai Seri 3-7 Buah
- Led COB 9-21W, 10-26V, Spek Arus Min 600mA
- Lampu Rell Track, Plafon, Sorot, Duduk, Meja
- Lampu Hias, Gantung, Tempel, SpotLight, DownLight
- Driver Led Custom Lainnya

INFO
- Kabel Warna Coklat Dan Biru Ke AC PLN
- Kabel Warna Merah Ke Positif Ke Led
- Kabel Warna Hitam Ke Negatif Ke Led

F.A.Q
- Apakah Jalur Output Ke Led Terasa Nyetrum Seperti Kabel PLN ?
Tidak, Driver Sistem Isolated, Jadi Kabel Output Ke Led Tidak Nyetrum
