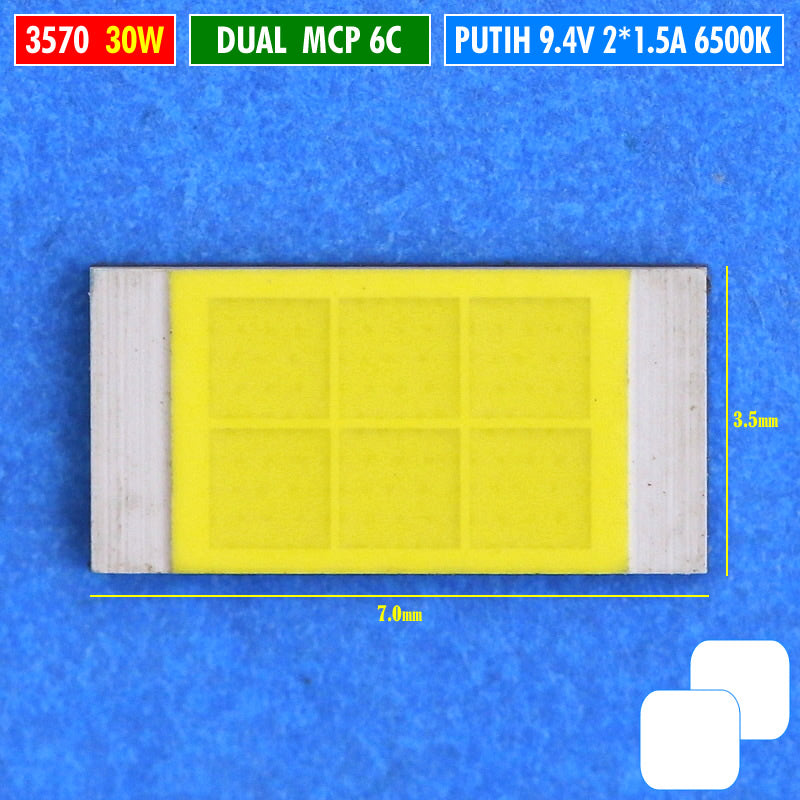

Chip LED 3570 30W 6C Dual Putih Putih MCP Laser D2 BiLED RTD AES 9V

Regular price Rp 29.640 Sale Rp 29.640

Vendor:Pusatled

SKU:275722

Categoties: LED.CSP.MCP, ORIGINAL.BRANDED.LED

Tags:

Share with:
Available: In stock 271 Pcs
SPESIFIKASI
- Voltage: 9.0-10.5V
- Arus Normal: 2500mA (2x 1250mA)
- Arus Max: 3000mA (2x 1500A)
- Power Rating: 30W (2x 15W)
- Lumen / Radian Flux: 3000 lm Max
- Viewing Angle: 125
- Chip Size Emitter Area: 6x 57 mil

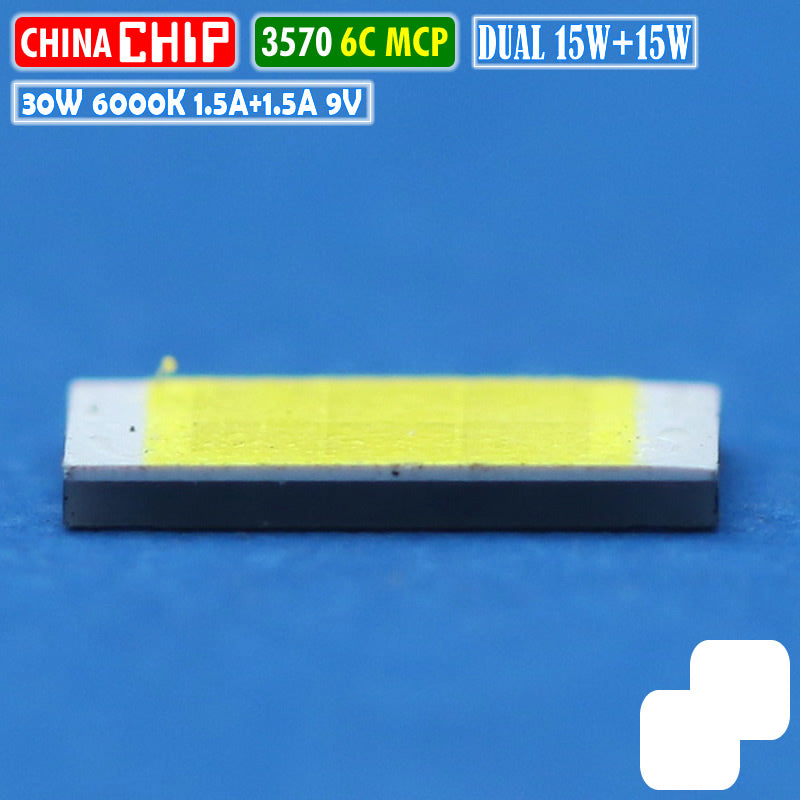

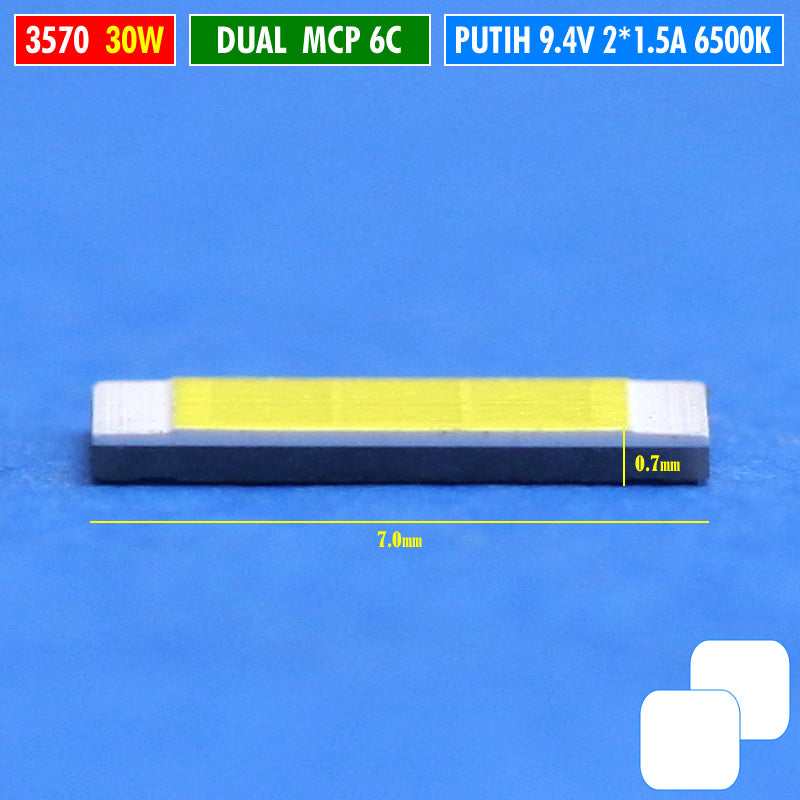

- Base Package: 3570 3.5mm x 7.0mm
- Base Material: Ceramic
- Wire Material: Alloy
- Base Board: -
- Asal Chip: China
- Brand Chip: Unknown
- Panjang Gelombang: -
- CRI-Ra: 60-70
- Kelvin: 6500K + 6500K
- Pancaran Cahaya: Putih + Putih
- Cahaya Die: PC Blue Chip PhosPhor Converted

DAYA WATTAGE
- 2000mA: 10V x 2.0A = 20 Watt Power
- 2500mA: 10V x 2.5A = 25 Watt Power
- 3000mA: 10V x 3.0A = 30 Watt Power

KEGUNAAN
- Laser BiLED, Projie, Dakar, Pajero, GT Alternative
- Luminos, AES, RTD, Voxx, Ayoto, Autovision, Duromoto
- Led Otomotif, DRL, Fog Lamp, Lampu Tembak. Spot, Belor, Work Light
- Pencahayaan atau Penerangan Lainnya

WARNING

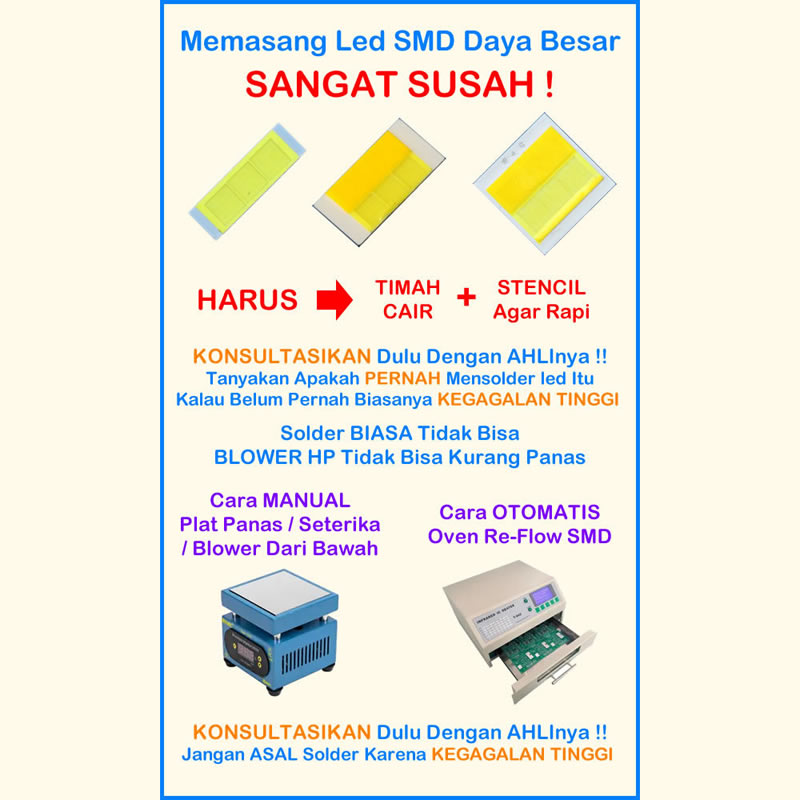

- Led Ini Belum ada PCB nya
- Led Panas, Gunakan Pendingin Maksimal
- Usahakan Maksimum Suhu Led 85 Celcius Agar AWET
- Produk China, Arus Jangan LEBIH Dari 3.0A Agar AWET

INFO

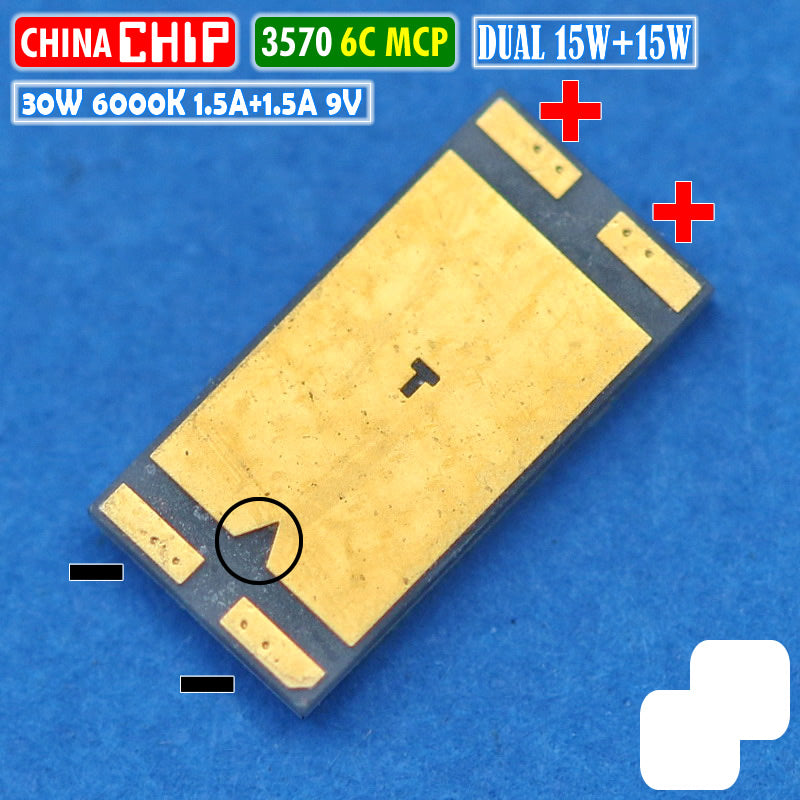

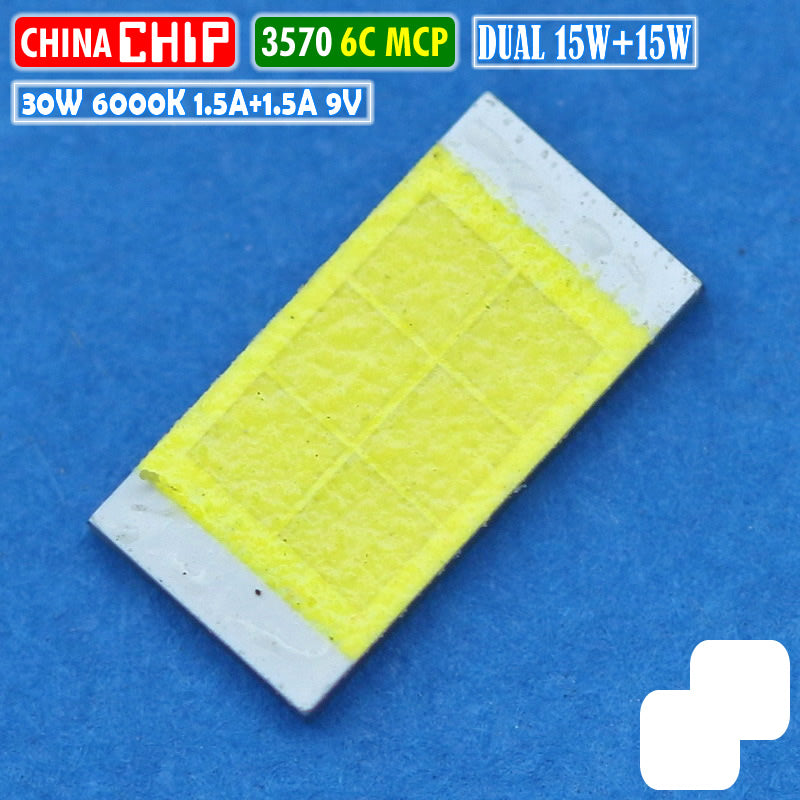

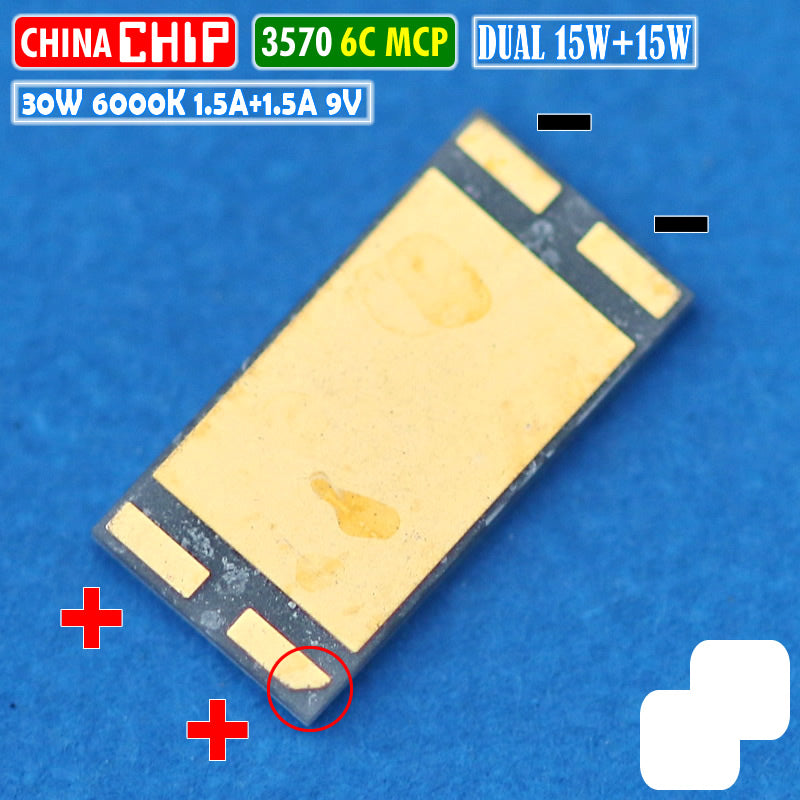

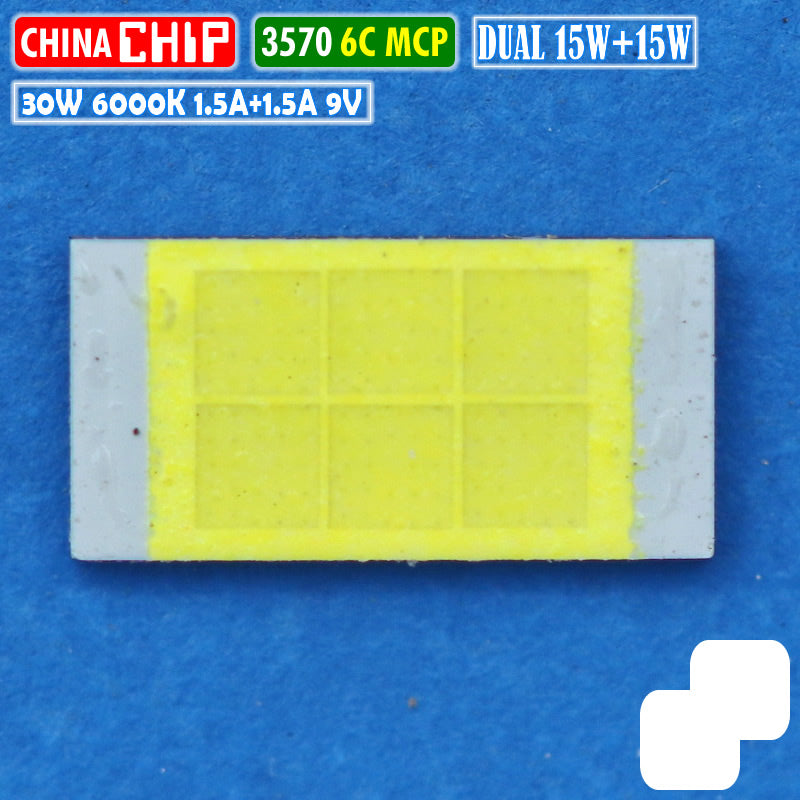

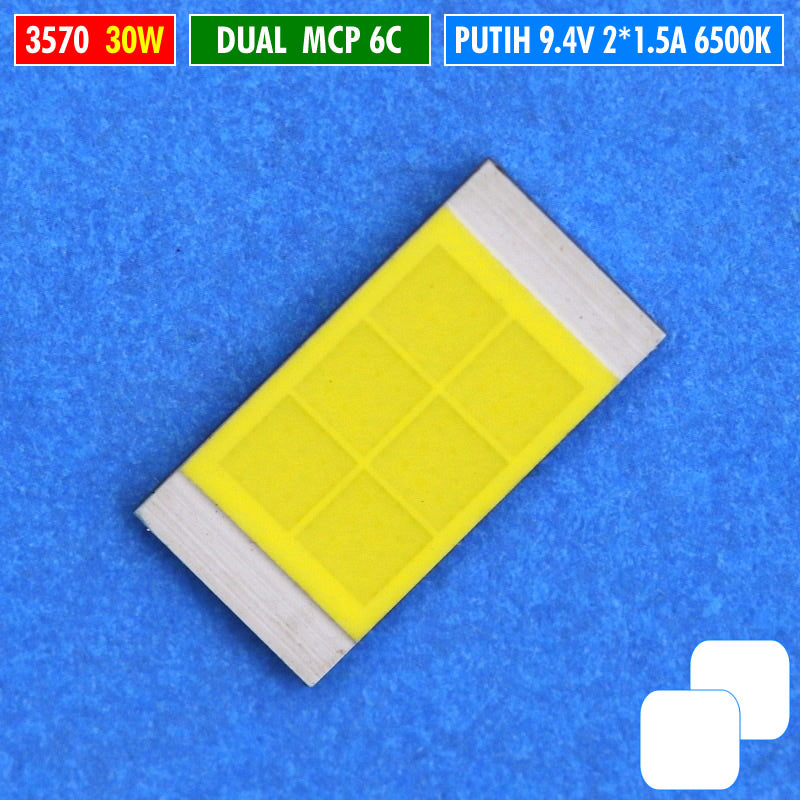

- Led MCP 3570 6 Chips, 3 Chips Putih + 3 Chips Putih

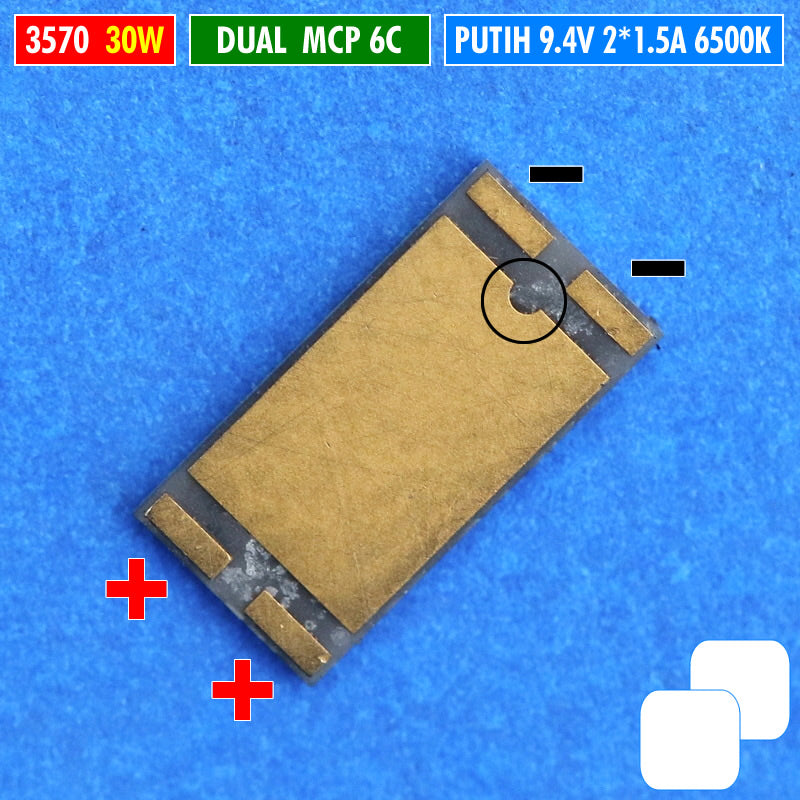

- Model ini DUAL Nyala Per Baris, Atas Bawah Bisa Nyala Sendiri
