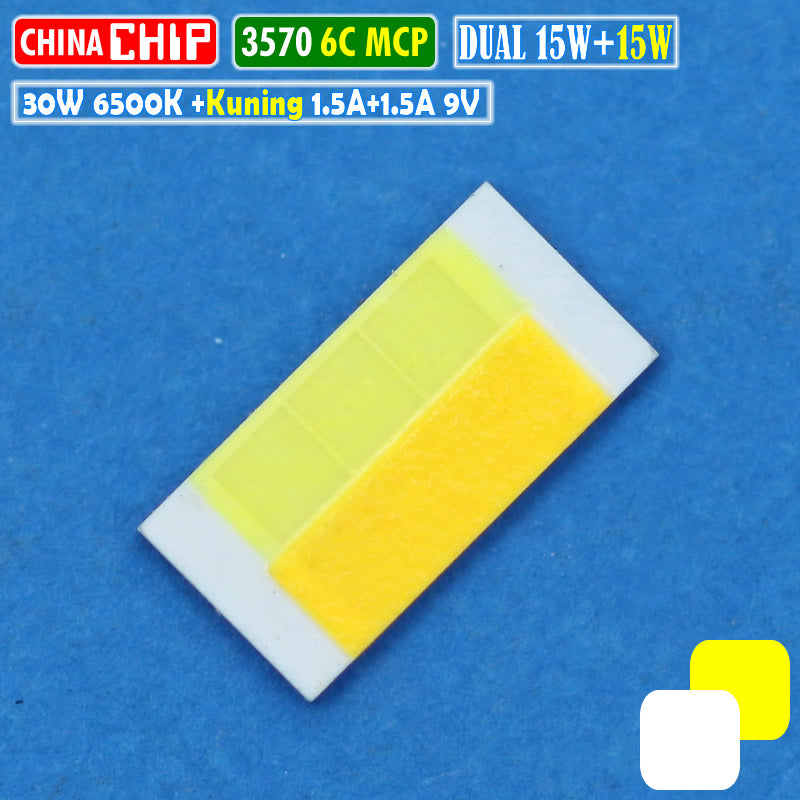

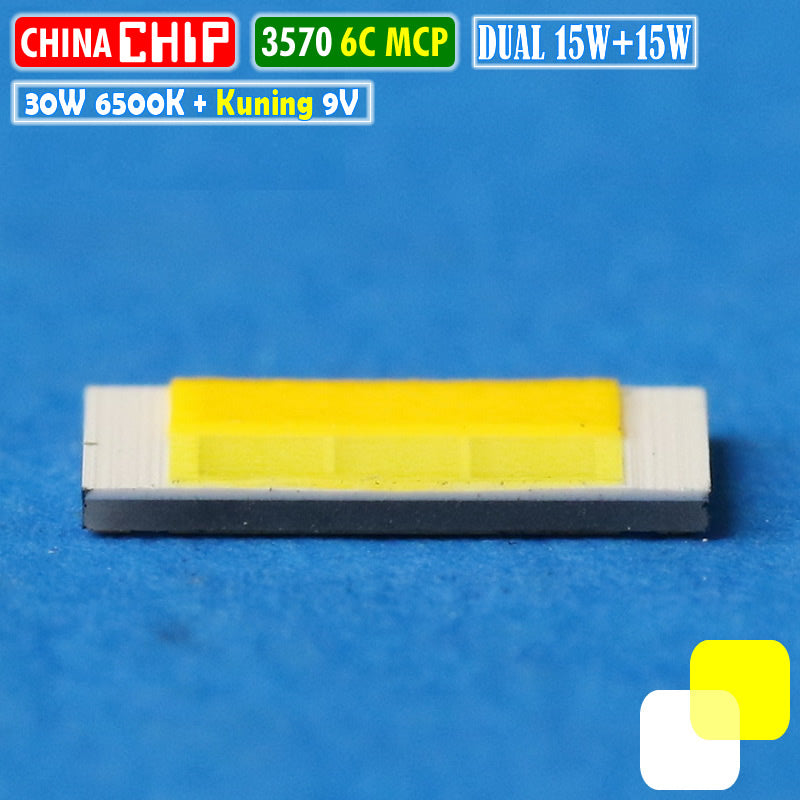

Chip LED 3570 30W 6C Dual Kuning Putih MCP CSP Laser Projie BiLED 9V

SPESIFIKASI
- Voltage: 9.0-10.5V
- Arus Normal: 2x 1250mA
- Arus Max: 2x 1500mA
- Power Rating: 30W
- Lumen / Radian Flux: 2800 lm Max
- Viewing Angle: 125
- Chip Size Emitter Area: 6x 57 mil

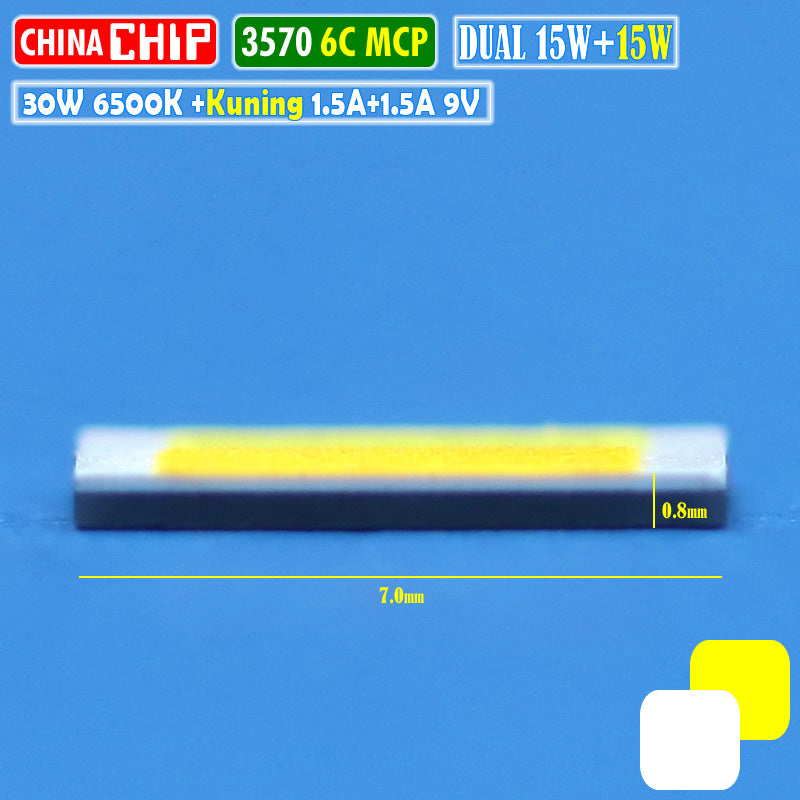

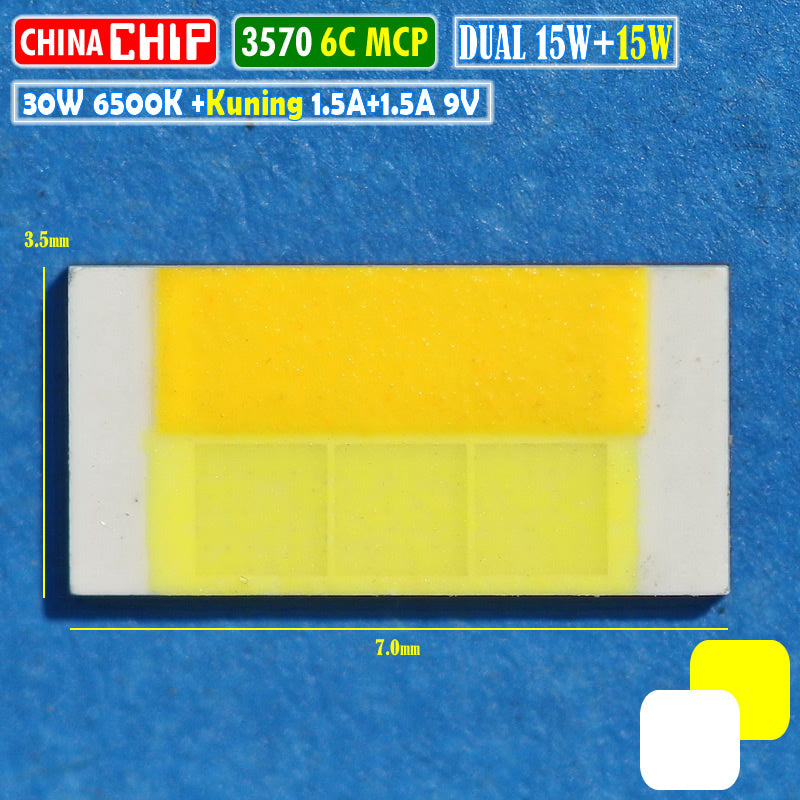

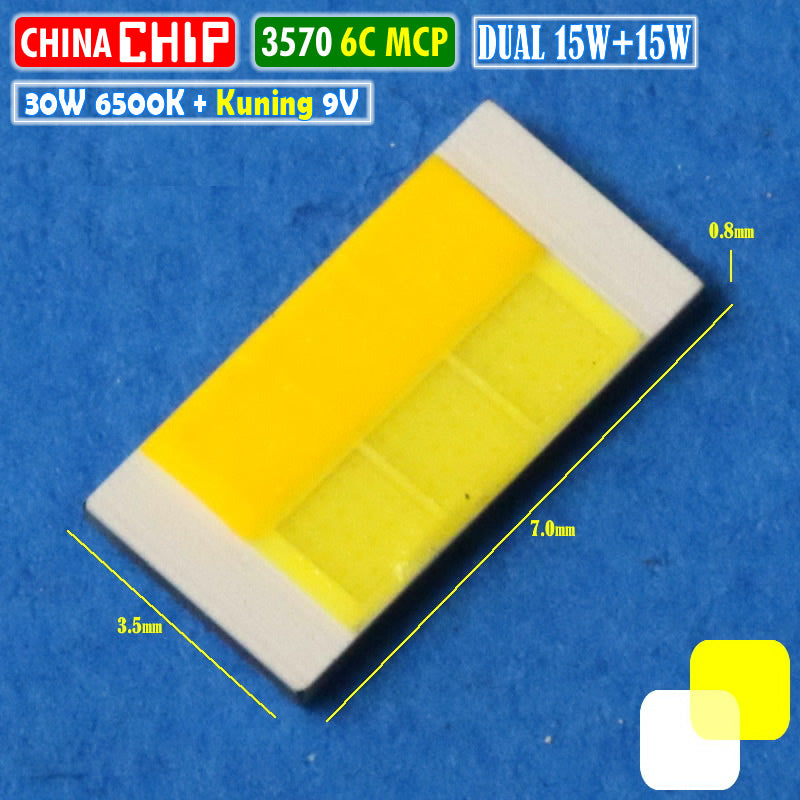

- Base Package: 3570 3.5mm x 7.0mm
- Base Material: Ceramic
- Wire Material: Alloy
- Base Board: -
- Asal Chip: China
- Brand Chip: Unknown
- Panjang Gelombang: -
- CRI-Ra: -
- Kelvin: 6500K + -
- Pancaran Cahaya: Putih + Kuning Emas
- Cahaya Die: PC Blue Chip PhosPhor Converted

DAYA WATTAGE
- 2000mA: 10V x 2.0A = 20 Watt Power
- 2500mA: 10V x 2.5A = 25 Watt Power
- 3000mA: 10V x 3.0A = 30 Watt Power

KEGUNAAN
- Projie, Dakar, Pajero, Laser
- Led Otomotif, DRL, Fog Lamp, Lampu Tembak. Spot, Belor, Work Light
- Pencahayaan atau Penerangan Lainnya

WARNING
- Led Ini Belum ada PCB nya
- Led Panas, Gunakan Pendingin Secukupnya
- Produk China, Arus Jangan LEBIH Dari 3.0A Agar Awet

INFO

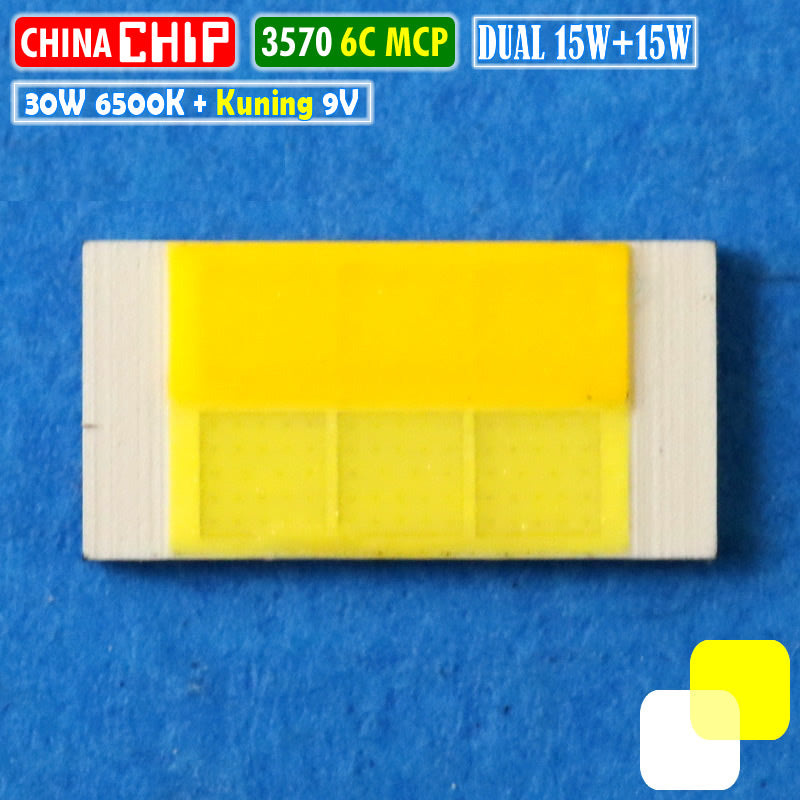

- Led MCP 6 Chips, 3 Chips Putih + 3 Chips Kuning
