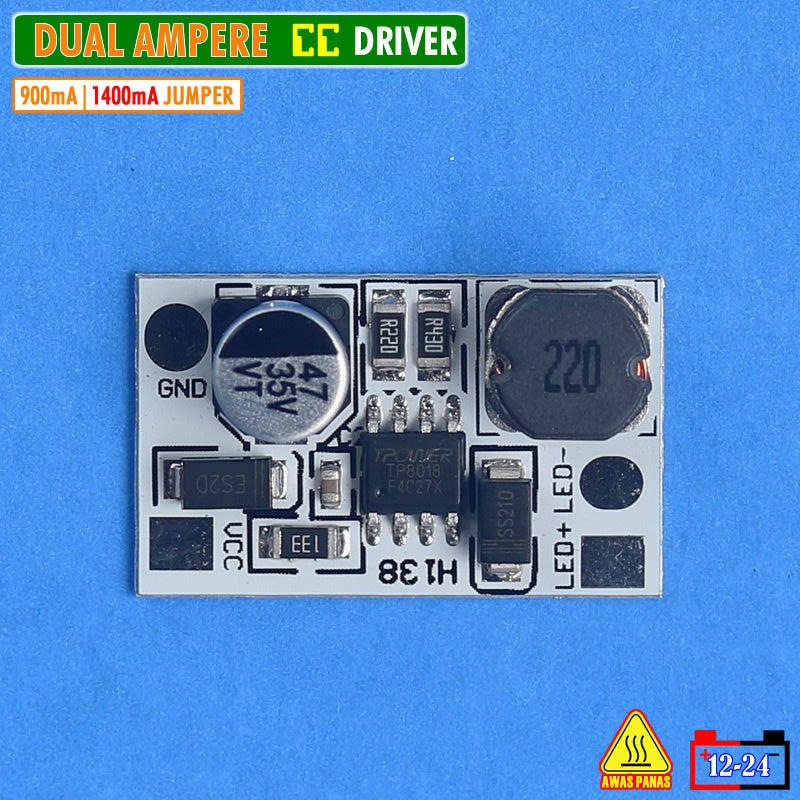

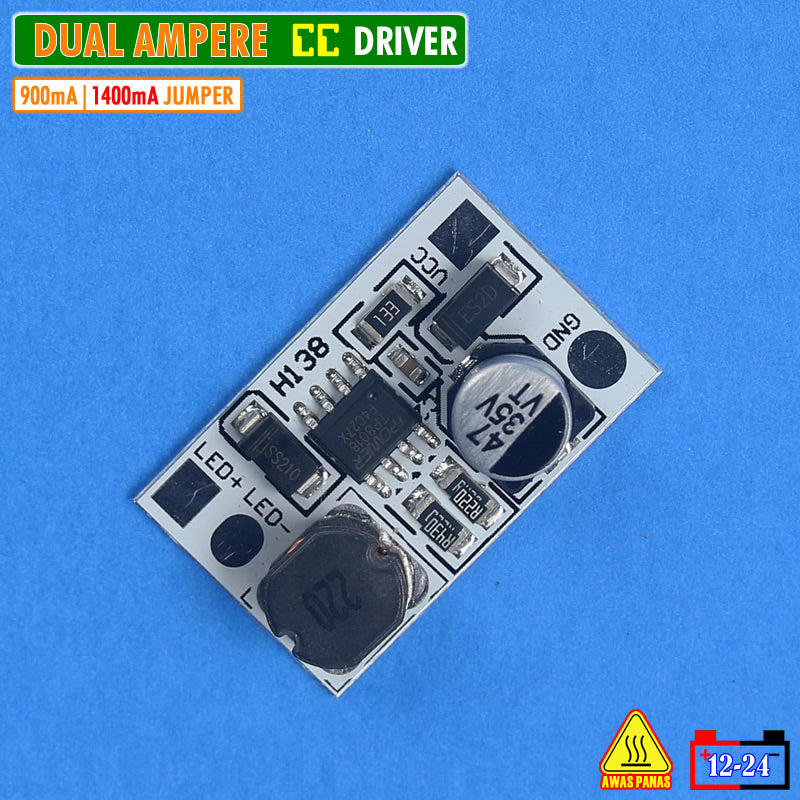

Dual Ampere 900mA 1400mA Mini Driver LED 5W HPL CREE SST OSRAM MCP CSP 10W 15W 1860 3570 IR AKI DC 12V 24V



Harga Per 1 pcs
Driver DC 900mA Dan 1400mA [Jumper] Bisa Aki 12V 24V
Bisa Untuk Satu Atau Beberapa Led SERI
SPESIFIKASI
- Input: DC 12-30V, Aki 12V 24V
- Output: Menyesuaikan Led yang Dipakai
- Output Tanpa Beban: Sama Dengan Input

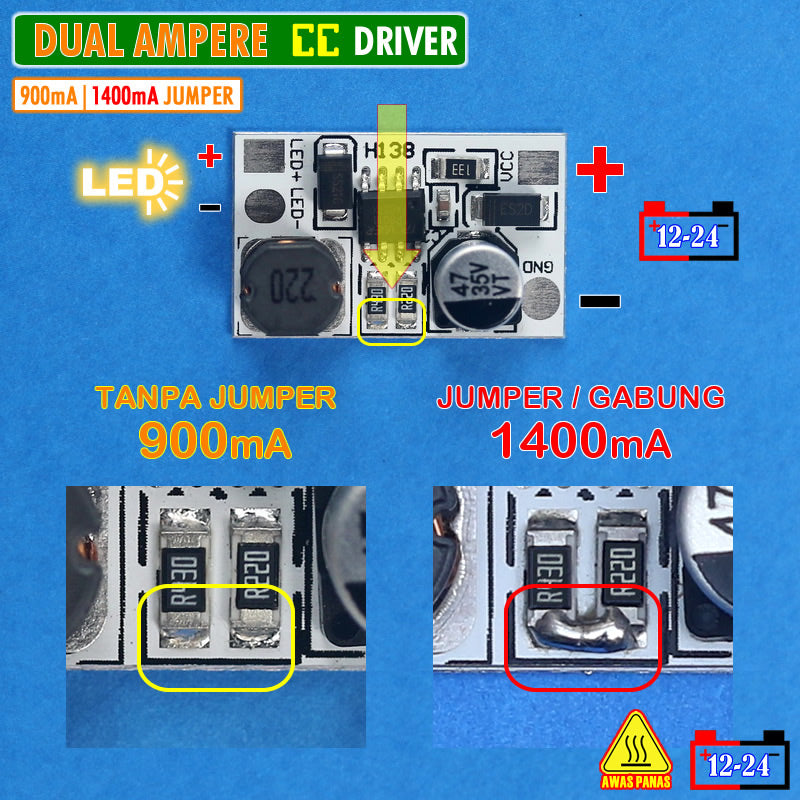

- Driver Type: Constant Current 900mA, 1400mA [Jumper]
- Power Rating: Lihat DAYA WATTAGE Dibawah
- Jumlah Mode: 1 Mode Panjer
- Waterproof: TIDAK

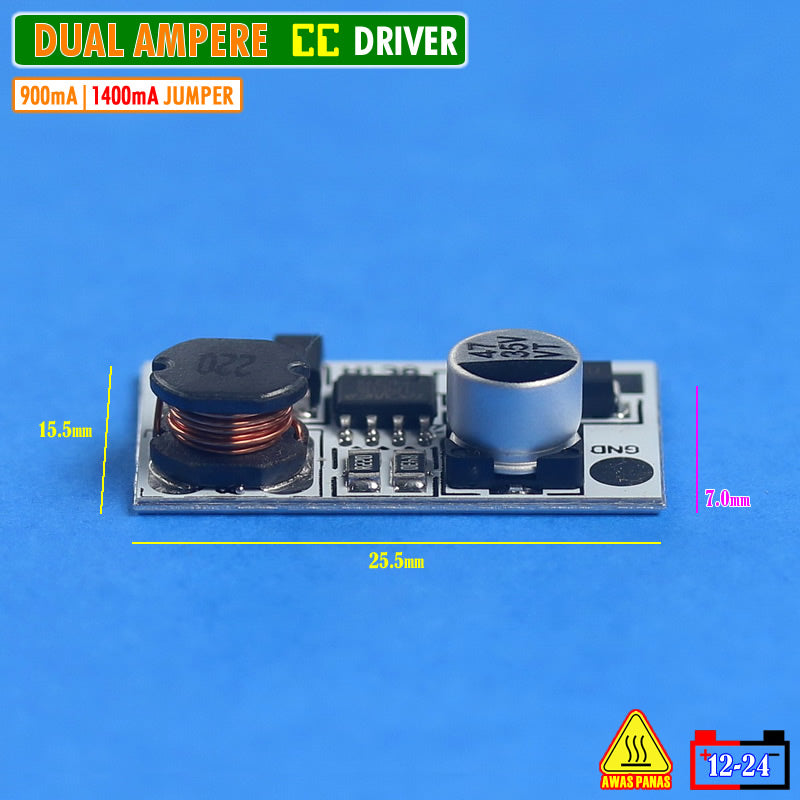

- Dimensi: Lihat Gambar
- Kualitas: Standart, 1x MosFet 2A 30W Max
- Max Suhu Pakai: 65 Celcius
- Berat Bersih: 2.45 gr
- Power Factor: 0.8 - 0.9
- Spike Protect: Yes
- Short Protect: Yes
- Temperatur Protect: Yes

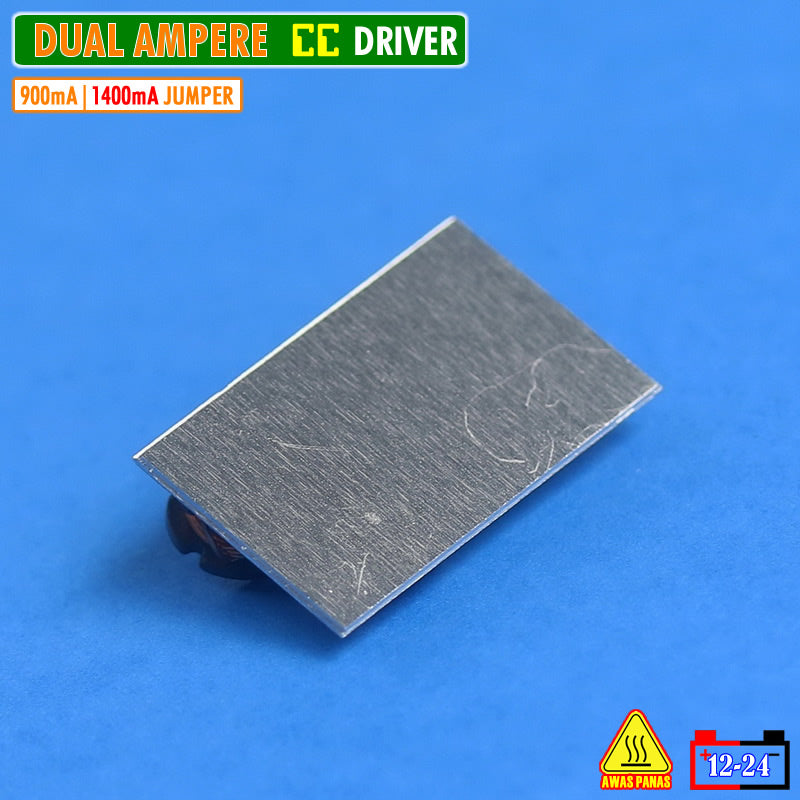

- Bahan PCB: Alumunium
- Brand: BK
- Asal: China
- Certification: -
KEGUNAAN
- Led HPL 5W 1-3x SERI
- Led HPL 10W, MCP CSP 1860, 3570, 3560
- Led Cree SST Osram 900mA 1400mA
- Driver Led Custom Lainnya
WARNING
- Pastikan Spek Ampere Lednya Sesuai, Jangan Berlebih Led Akan Cepat Rusak
- Driver Panas !!, Tambahkan Pendingin Agar Awet

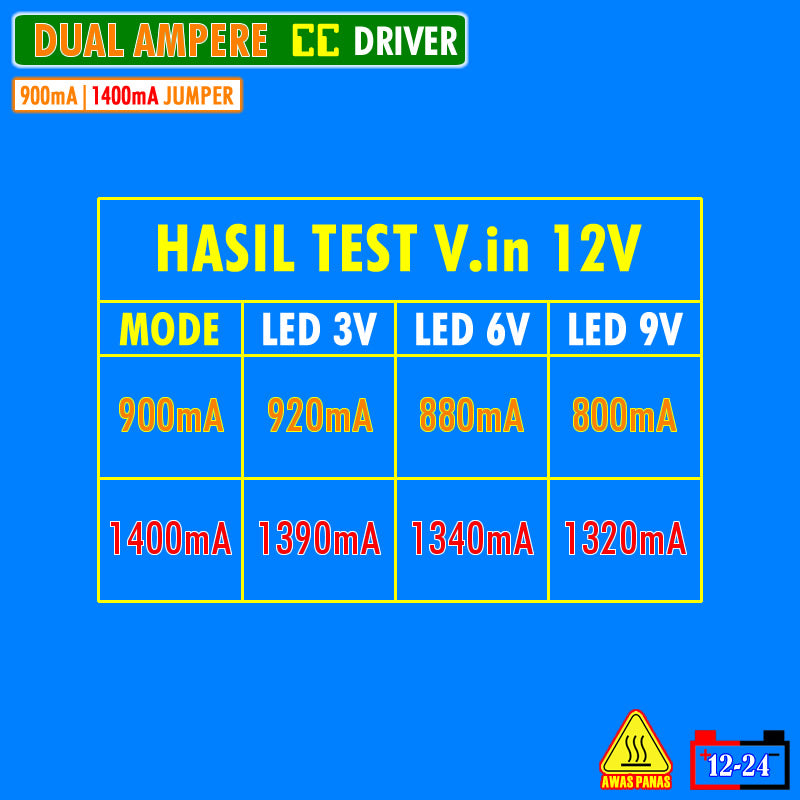

DAYA WATTAGE
- Led 3V 900mA: 3.2V x 0.9A = 2.88 Watt
- Led 3V 1.40A: 3.2V x 1.4A = 4.48 Watt
- Led 6V 900mA: 6.4V x 0.9A = 5.76 Watt
- Led 6V 1.40A: 6.4V x 1.4A = 8.96 Watt
- Led 9V 900mA: 9.6V x 0.9A = 8.64 Watt
- Led 9V 1.40A: 9.6V x 1.4A = 13.5 Watt
INFO
- Lakukan Test Suhu !!, Suhu di PCB DRIVER Tidak Boleh Lebih 65 Celcius
- Lakukan Test Suhu !!, Suhu di PCB LED Tidak Boleh Lebih 80 Celcius
F.A.Q
- Apakah Perlu Menggunakan Relay ?
Ampere Kecil Tidak Perlu Relay, Pastikan Saja Pakai Saklar 3A Atau Lebih
